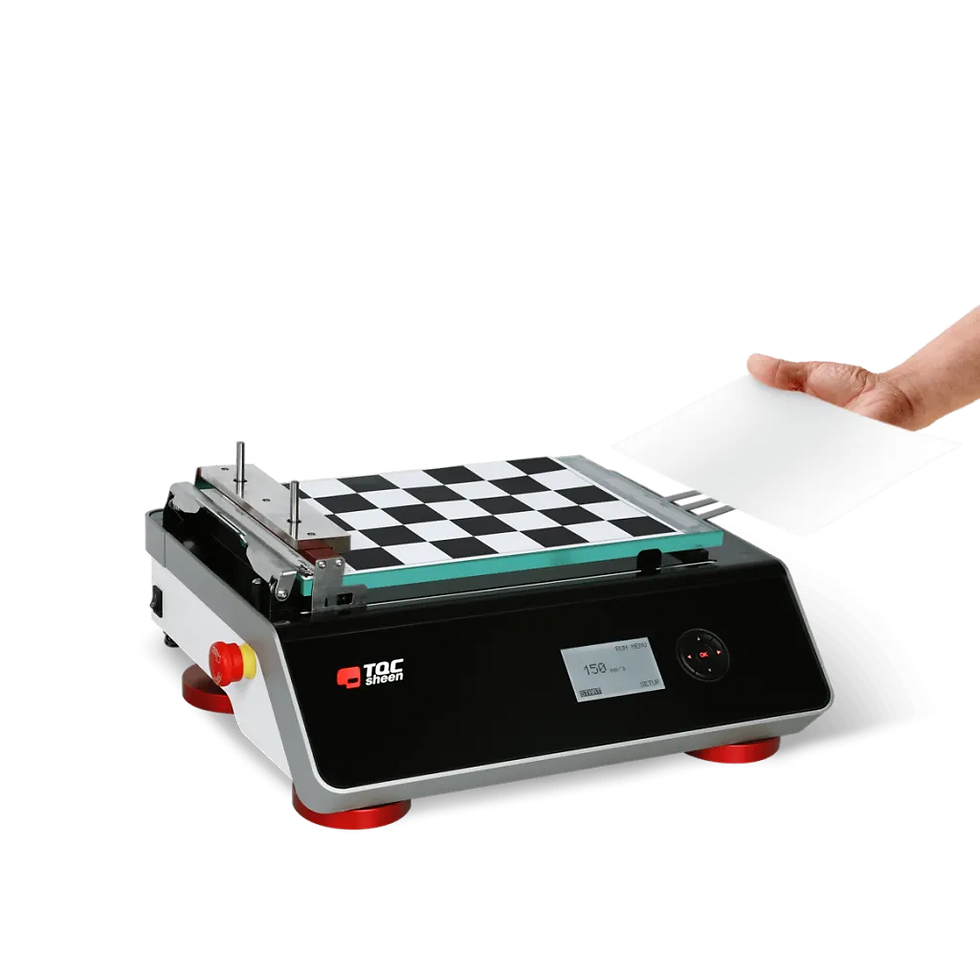

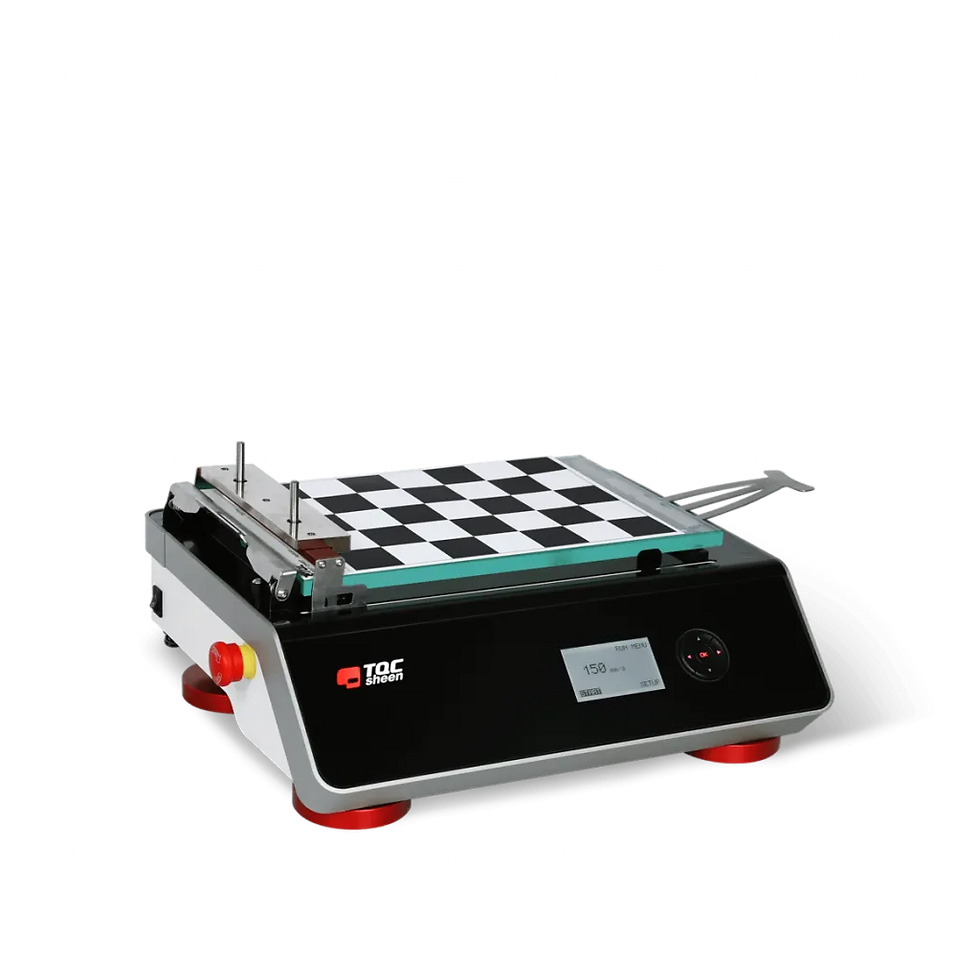

The AFA Compact is an entry level film applicator that accepts charts up to A4 size. Application speed can be set from 1 to 150 mm/s. The Compact is suitable for both wire wound rod applicators and block applicators. Operating is easy through the standard TQC operating interface. The AFA Compact is available with a glass bed or a perforated vacuum bed.



Art. nr. AB3652

TQC Automatic Film Applicator Compact,  230/115 VAC



Art. nr. AB3670

Spare Glass Bed for Automatic Film Applicator Compact



Art. nr. AB3653

Vacuum bed for the TQC Sheen Automatic Film Applicator Compact, 230/115 VAC



Number of holes in vacuum bed:  117

Dimensions:  335x400x190 mm / 13.18×15.74×7.48 inch

Distance vacuum bed holes:  22 mm / 0.86 inch

Diameter holes in vacuum bed:  1,3 mm / 0.05 inch

Spiral bar diameter:  6 – 12,7 mm / 0.23 – 0.5 inch

Display:  128 x 64 pixels graphical LCD, 70 mm x 40 mm, white illuminated, heated

Energy consumption:  Max. 40 Watt

Mass:  12,5 kg / 27.55 lbs

Max. size test panel:  300x200x8 mm / 11.81×7.87×0.31 inch

Max. height film applicators:  40 mm / 1.57 inch

Max. Test Substrate Thickness:  8 mm / 0,31 inch (incl coating)

Max. Test Chart Size:  DIN A4

Min. Spiral bar length:  >220 mm / >8.66 inch

Min. Vacuum:  -100 mbar

Speed ​​Accuracy:  < 1%

Stroke length:  250 mm / 9.84 in

Stroke length accuracy:  <1 mm (0,025 mm/step) / <0.03 inch

Languages:  English

Traverse speed:  1 – 150 mm/s / 0.03 – 5.90 inch/s

Vacuum connection:  6 mm / 0.23 inch Quick Connect

Power supply:  110 – 240VAC / 50 – 60Hz

Volume Drip tray:  30 ml

Automatic Film Applicator Compact (เครื่องลาก อุปกรณ์สร้างความหนาฟิล์มเปียก)
