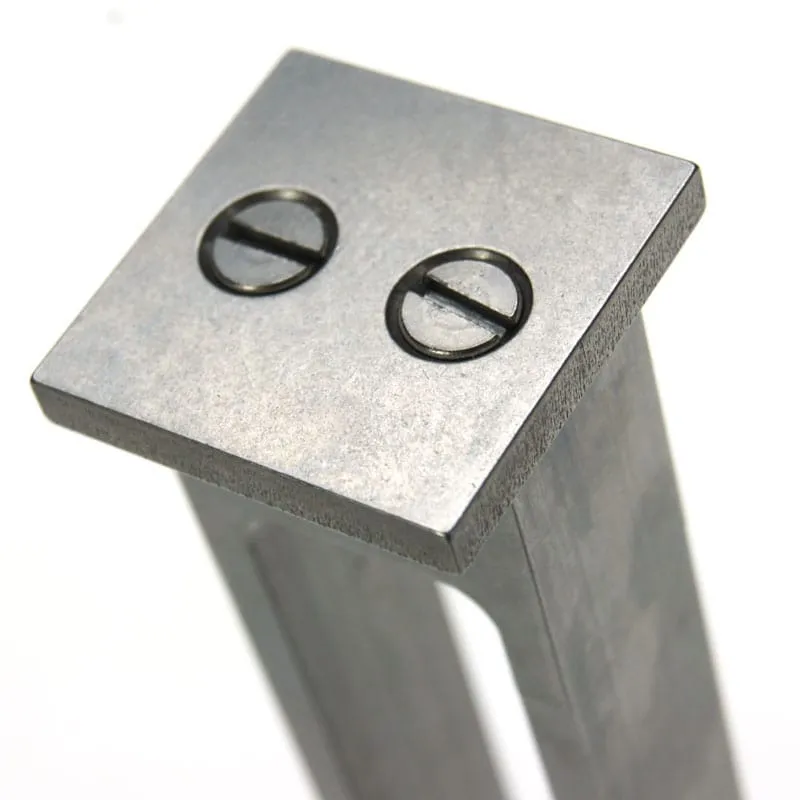

The TQC Sheen 4-Sided Film Applicator (Quadruplex) has four application sides for applying paint films with four different predefined thicknesses, in film width 60 or 80 mm. One side of the applicator is supplied with a guidance support for straight application. This support may be removed as well. The high grade stainless steel will not be affected by acid or base elements.


Material:  ASAB Stavax ESR medical grade stainless tool steel, Sub Zero Vacuum hardened (+1756°C to -70°C), hardness HRC 55 (through hardened)

Accuracy:  +/- 2 µm

Surface treatment:  Polished



 60mm80 mm
50/100/150/200 µmVF2170VF2175
30/60/90/120 µmVF2169VF2174
15/30/60/90 µmVF2168VF2173

4-sided Film Applicators
